Commercial Water Filtration
Suitable for commercial applications requiring high-flow and continuous filtered water.

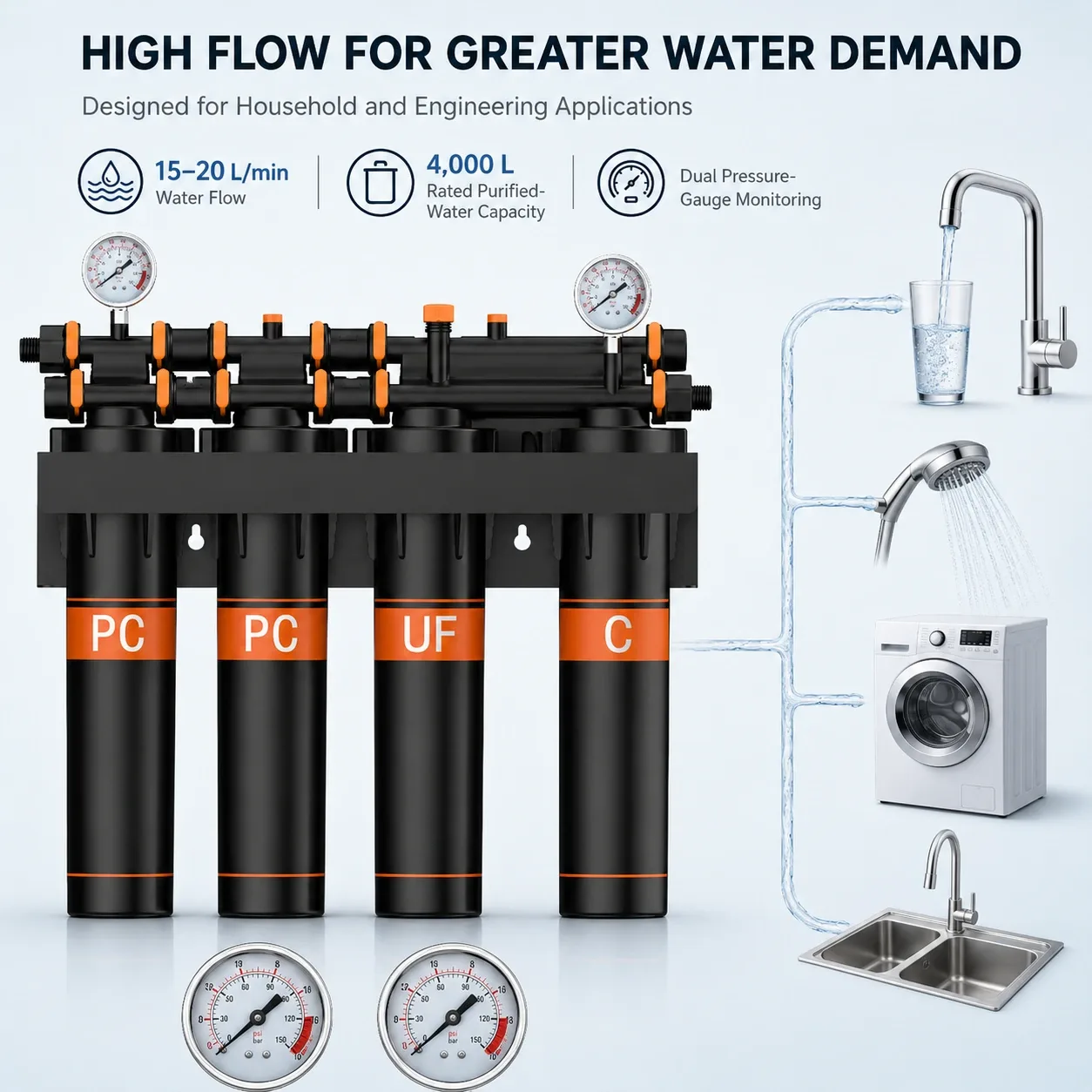

20-Inch 4-Stage Ultrafiltration Water Purifier | D07
Commercial Ultrafiltration Water Purification Systems
SKU: D07
D07 uses a four-stage 20-inch PC + PC + UF + carbon configuration. Compared with the three-stage D06, its public specifications list 15–20 L/min flow, a 600 × 135 × 715 mm body and 9 kg net/gross weight.
Read full descriptionMOQ10 units
PackagingProduct Dimensions: 600 × 135 × 715 mm
OEM / ODMAvailable
- 20-inch 4-stage ultrafiltration system

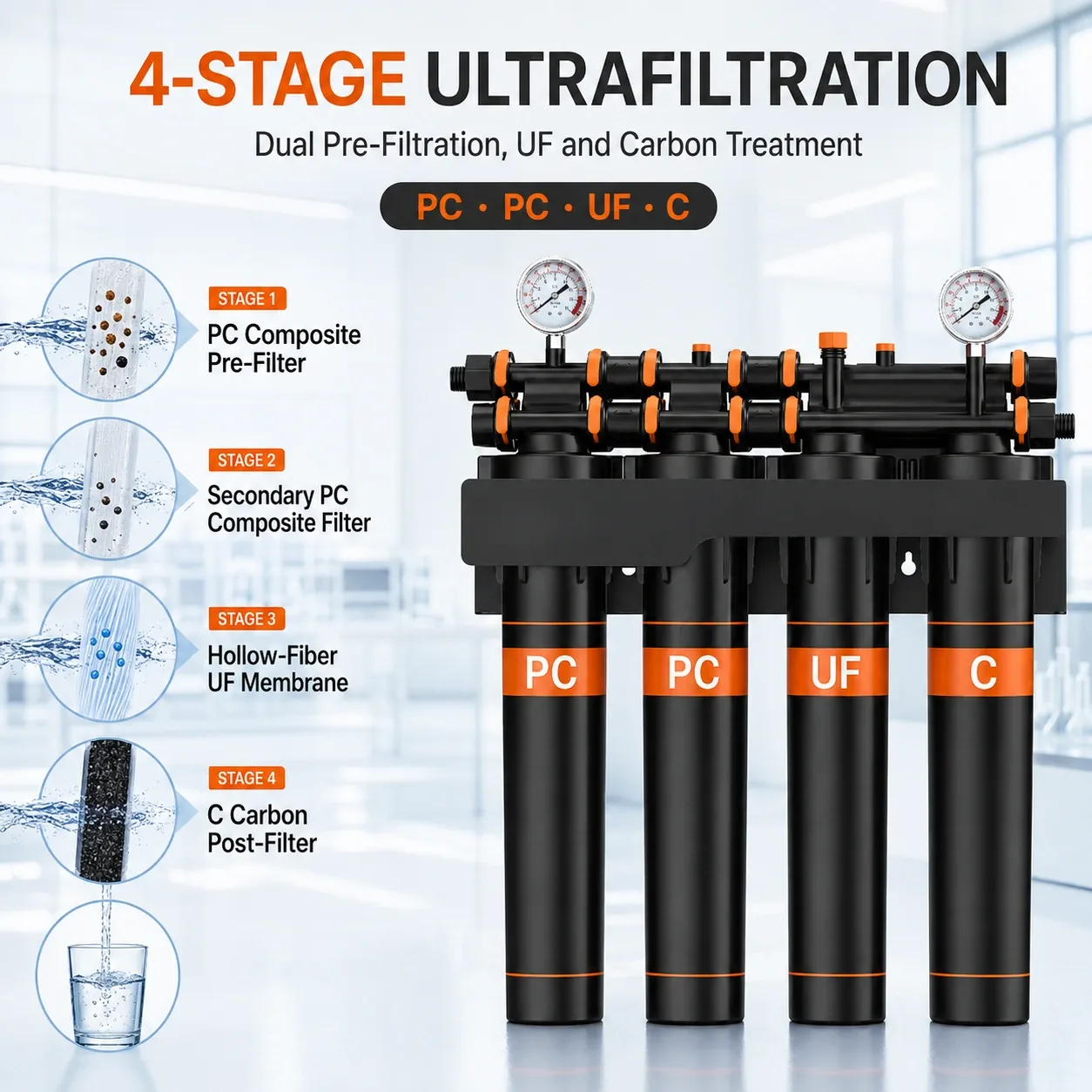

- PC + PC + UF + C filtration configuration

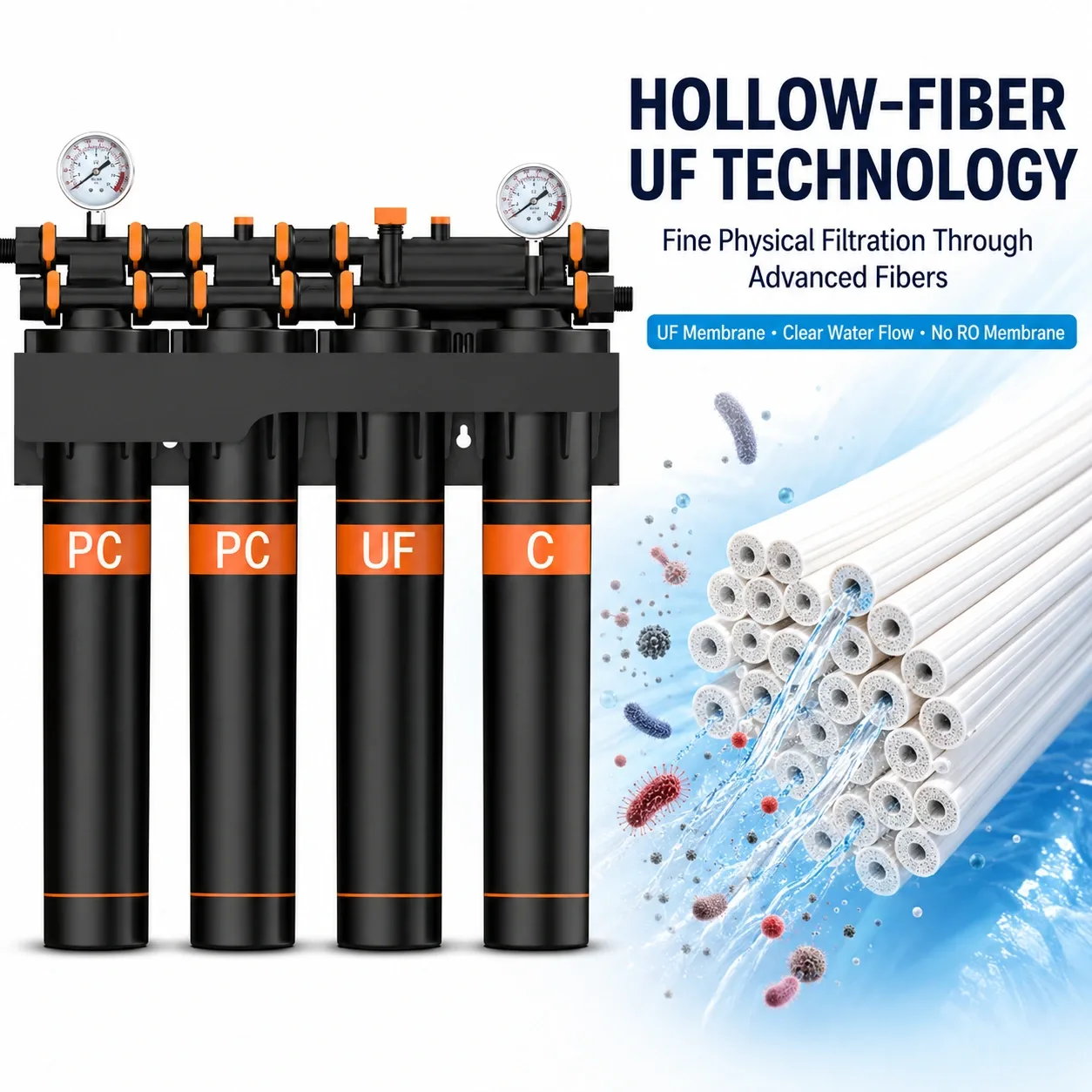

- UF filtration helps reduce suspended impurities and bacteria
- High flow rate of 15–20 L/min
Product Information
Specifications
- Model
- D07
- Filtration Type
- Ultrafiltration (UF)
- Filter Configuration
- PC + PC + UF + C
- Stages
- 4-Stage
- Filter Size
- 20 Inch
- Flow Rate
- 15–20 L/min
- Rated Purification Capacity
- 4000 L
- Feed Water
- Municipal Tap Water
- Operating Temperature
- 3–38°C

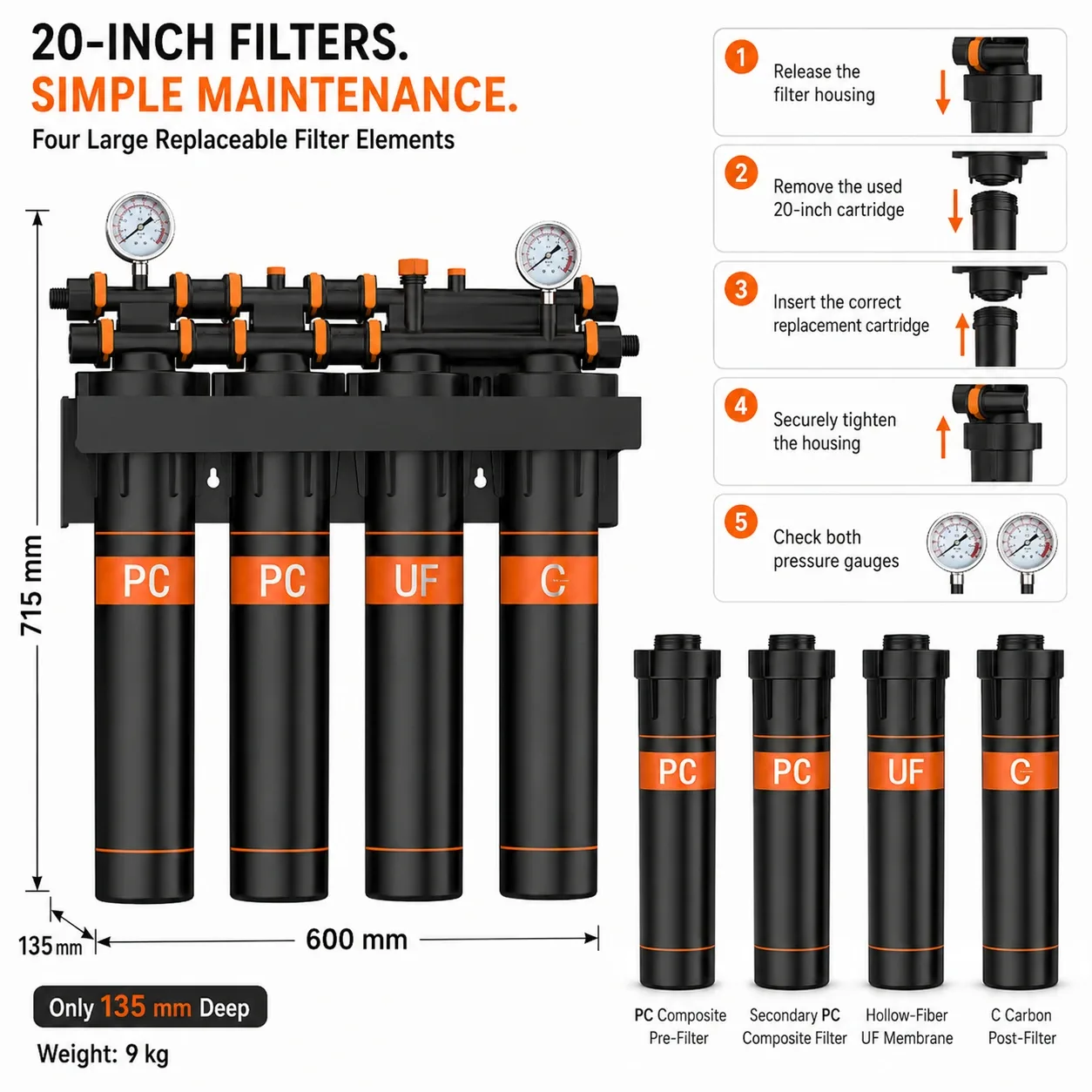

- Product Dimensions
- 600 × 135 × 715 mm
- Net/Gross Weight
- 9 kg
Features
20-inch 4-stage ultrafiltration system
PC + PC + UF + C filtration configuration
UF filtration helps reduce suspended impurities and bacteria
High flow rate of 15–20 L/min
Rated purification capacity of 4000 L
Designed for municipal tap water
Stable water output with adjustable flow design
Suitable for commercial and engineering applications
Application Scenarios
Engineering Projects
Suitable for water filtration projects with higher flow requirements.

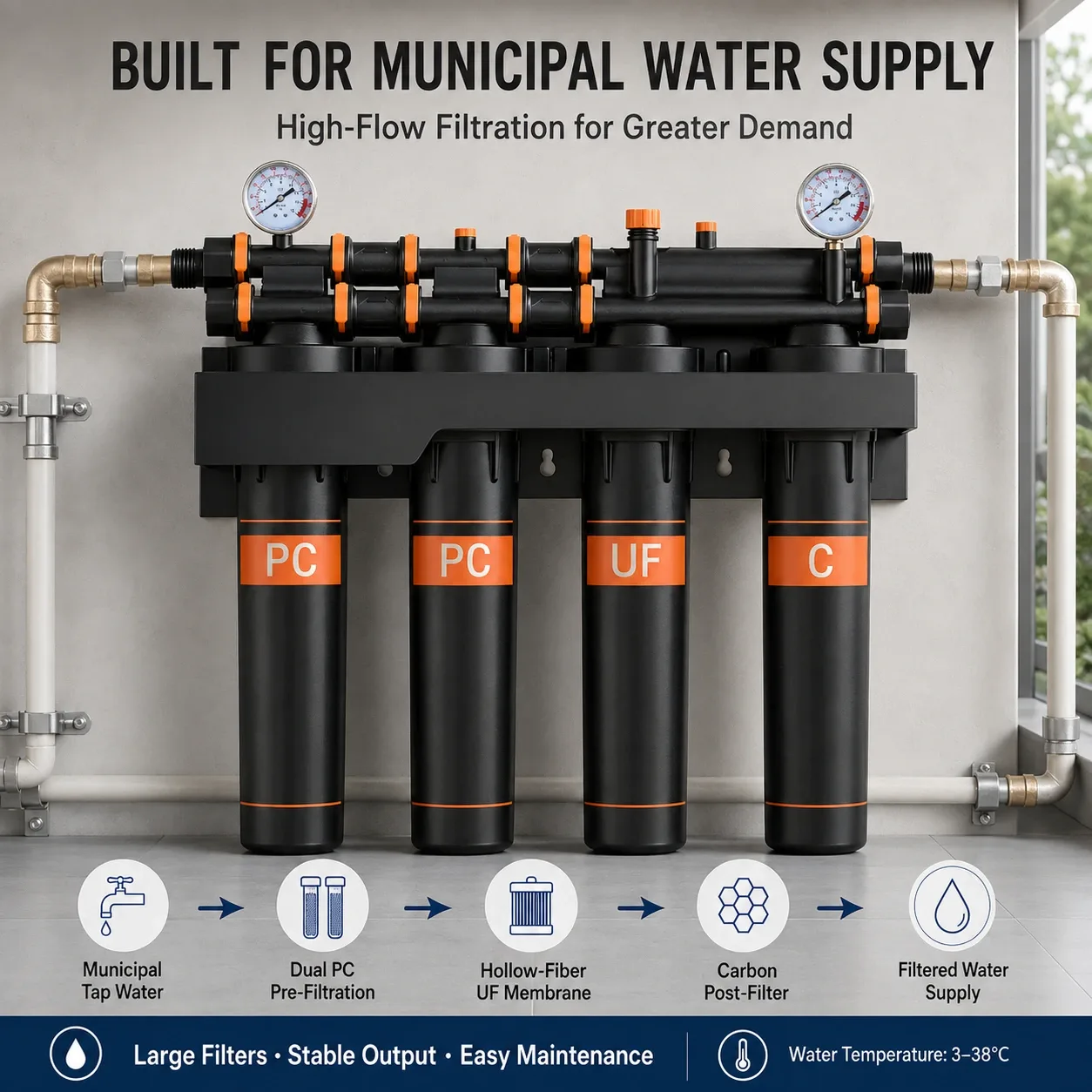

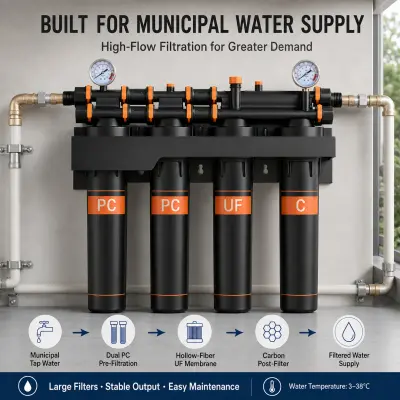

Municipal Tap Water Filtration
Designed for the filtration and purification of municipal tap water.
Product Description
D07 adds a second PC stage to the D06 layout — PC + PC + UF + carbon — and raises the specified flow to 15–20 L/min. The body grows to 600 × 135 × 715 mm and 9 kg, with the same 4000 L rated purification capacity on municipal tap water. It is the balanced option in the 20-inch UF range; choose D08 if you want a third PC stage ahead of the UF membrane.
