100G–800G Smart RO Water Purifier with Color Display & TDS Monitoring | M09

M09 platform and capacity selection

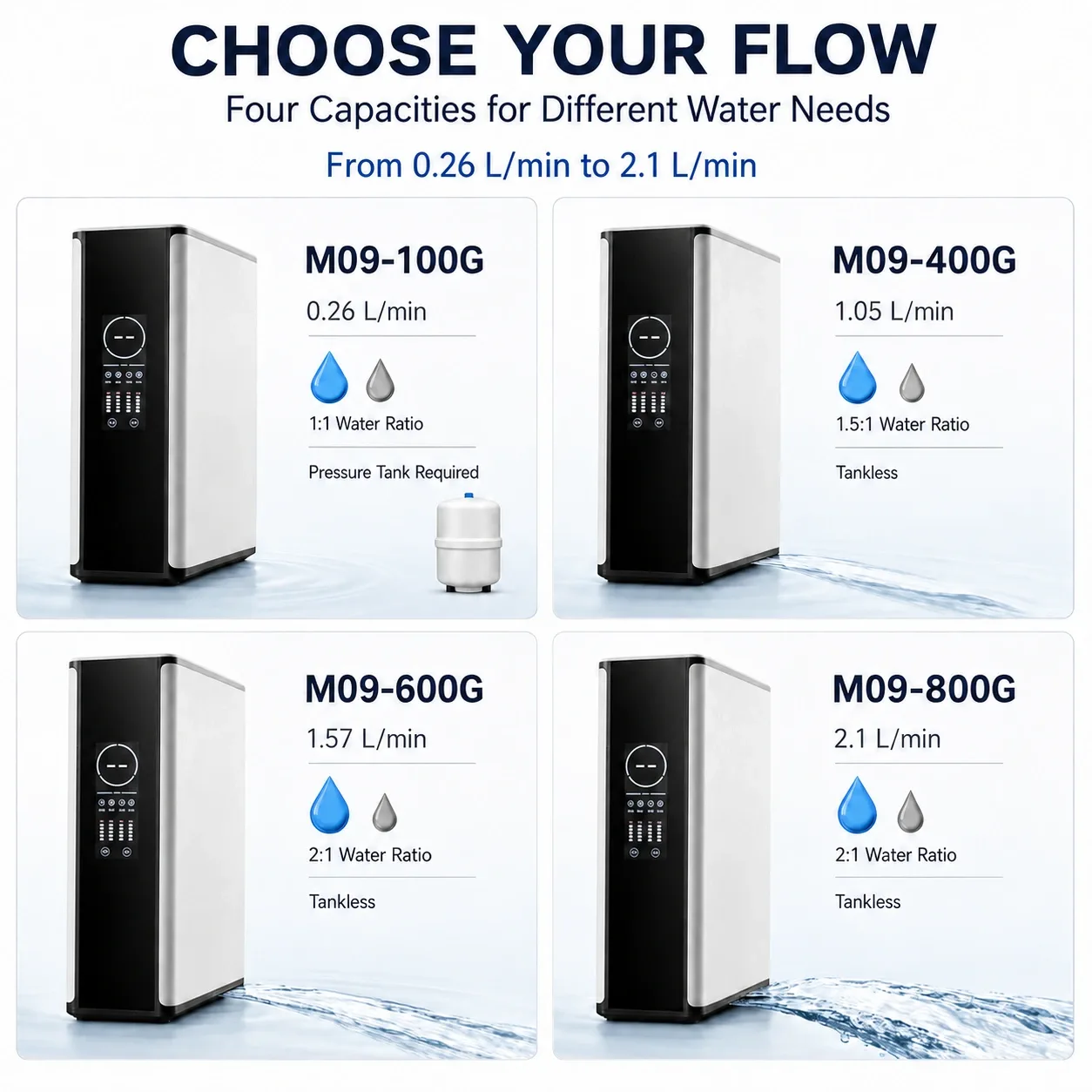

M09 is an under-sink RO platform offered in 100, 400, 600 and 800 GPD versions. The 100 GPD configuration uses a pressure tank, while the 400–800 GPD configurations are tankless. Rated flow increases from 0.26 L/min at 100 GPD to 1.05, 1.57 and 2.1 L/min for the 400, 600 and 800 GPD versions respectively, so buyers can select a configuration around the required delivery rate rather than choosing by model name alone.

Controls and service information

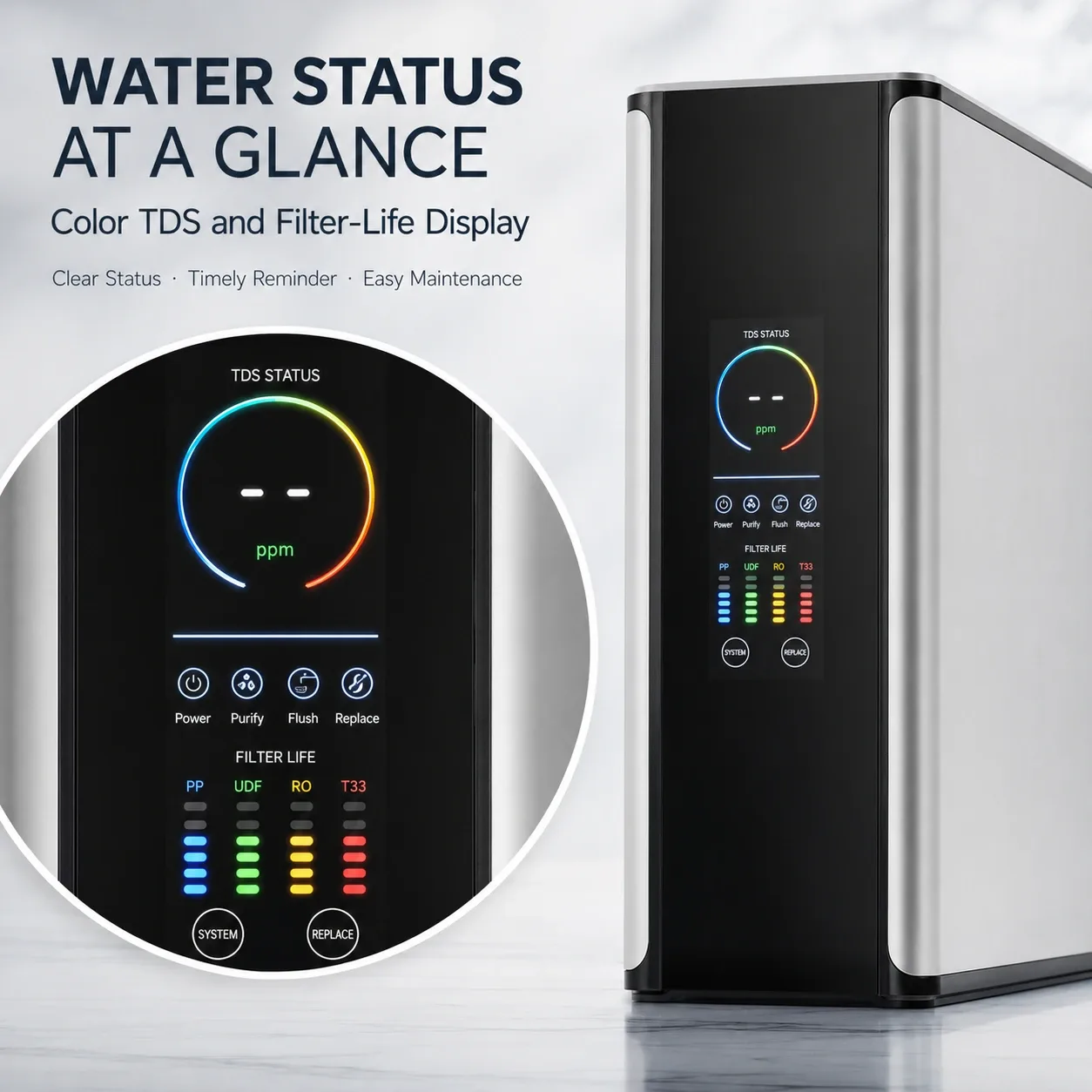

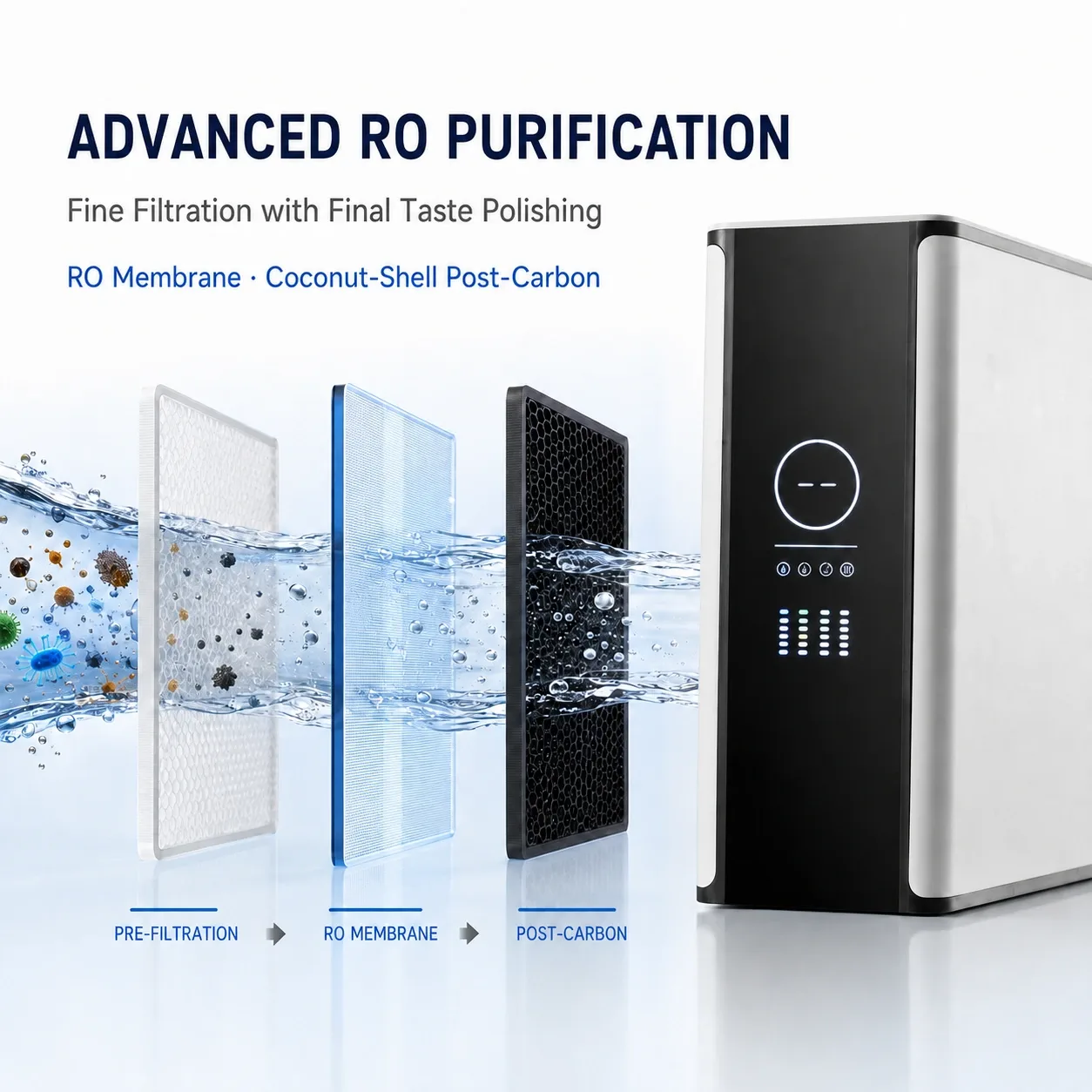

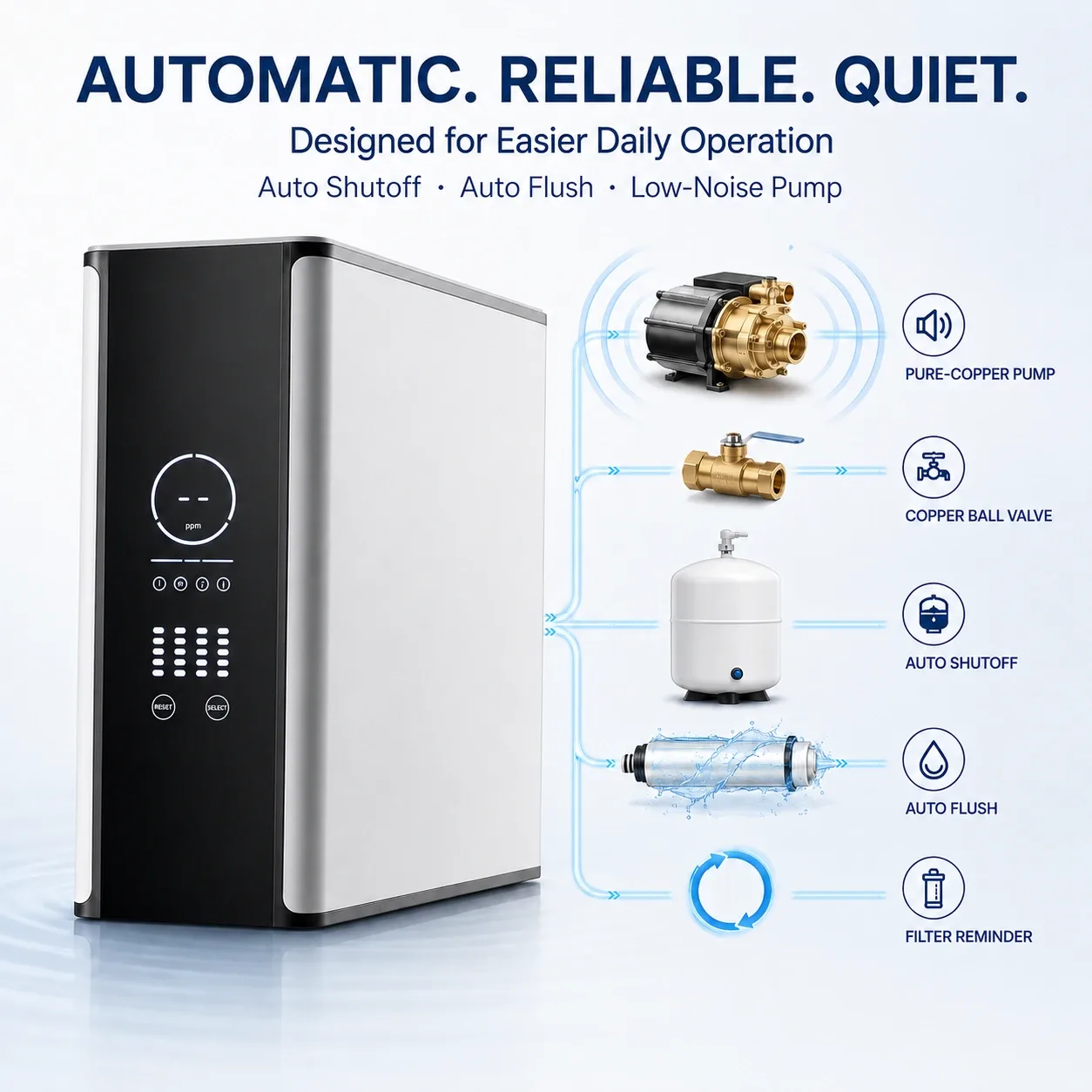

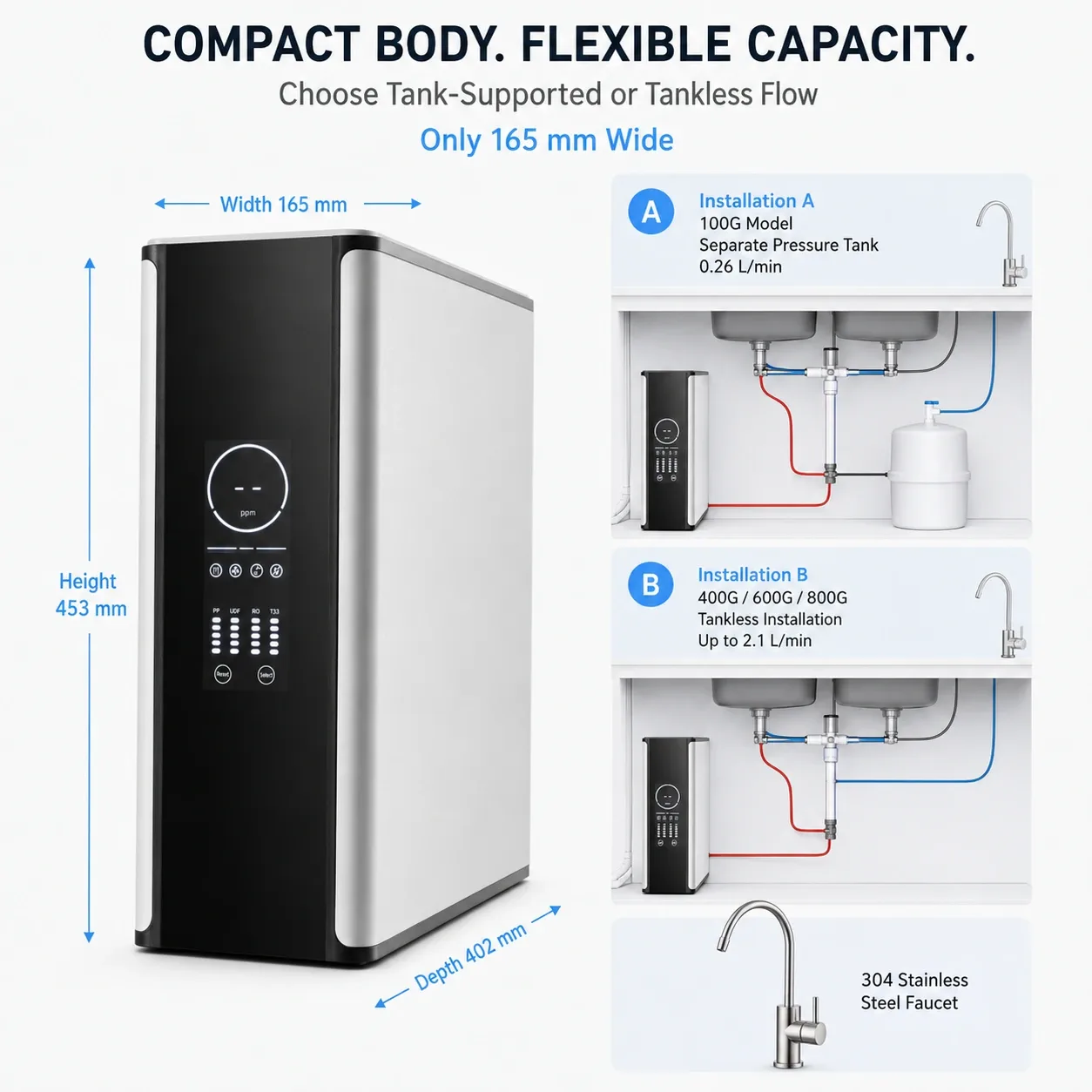

The large color display shows TDS information and provides a filter-replacement reminder. Automatic flushing and automatic shut-off are included in the listed configuration. The platform uses an RTL RO membrane, imported Sri Lankan activated carbon, a 304 food-grade stainless-steel faucet and a pure-copper booster pump. The stated product size is 165 × 453 × 402 mm; installation clearance and service access should still be checked against the final cabinet layout.

OEM/ODM decisions before sampling

Specify the required capacity, tank or tankless layout, destination-market electrical standard, display language, faucet option, filter configuration, branding and packaging before sample approval. For a simpler color-display proposition, compare the M07 model; for a different TDS-display platform, review the M02 model. The comparison should be based on the approved bill of materials and sample for the target market.
